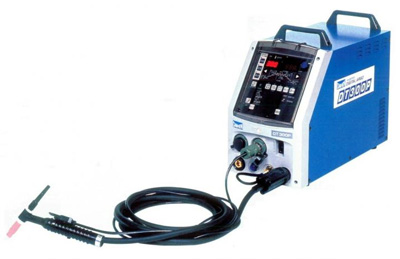

| Welding Machine | DT-300P |
| Supply Voltage | 400 ± 15 V |
| Number of Phases | 3 |
| Power Consumption | WIG 11,0 / Stick: 9,0 kVA |
| Duty Cycle | 40 % at 300 A |
| Output Current Range | TIG 4 – 300 / Stick: 10 – 250 |
| Load Voltage | TIG 22,0 / Stick: 30,0 |
| Maximum No-load Voltage | 58 |
| Initial, crater filler current | TIG 4 – 300 / Stick: 10 – 250 |
| Pulsed Current | TIG 4 – 300 / Stick: 10 – 250 |
| Base Current | TIG 4 – 300 / Stick: 10 – 250 |
| Gas pre-flow | 0 – 20 sec. |
| Gas post-flow | 0 – 30 sec. |
| Up-slope | 0 – 10 sec. |
| Down-slope | 0 – 10 sec. |
| Pulsed frequency | 0,1 – 500 Hz |
| Pulse width | 50 (changeable by function key 5-95 %) |
| Crater Filler Control | On, Off, Repeat - change type |
| Arc spot | 0,1 – 10 sec. |
| Number of job memory | 30 |
| Start type | High Frequency Start / Touch Start |
| Dimensions (L x D x H) | 640 x 250 x 370 (without the carrying handle) |
| Weight | 30 kg |
